Leach Field Size Calculator

Introduction to leach fields and soil absorption

Septic and leach-field sizing is governed by local code, soil tests, site conditions, and permitting — treat every number on this page as a planning estimate, not a design.

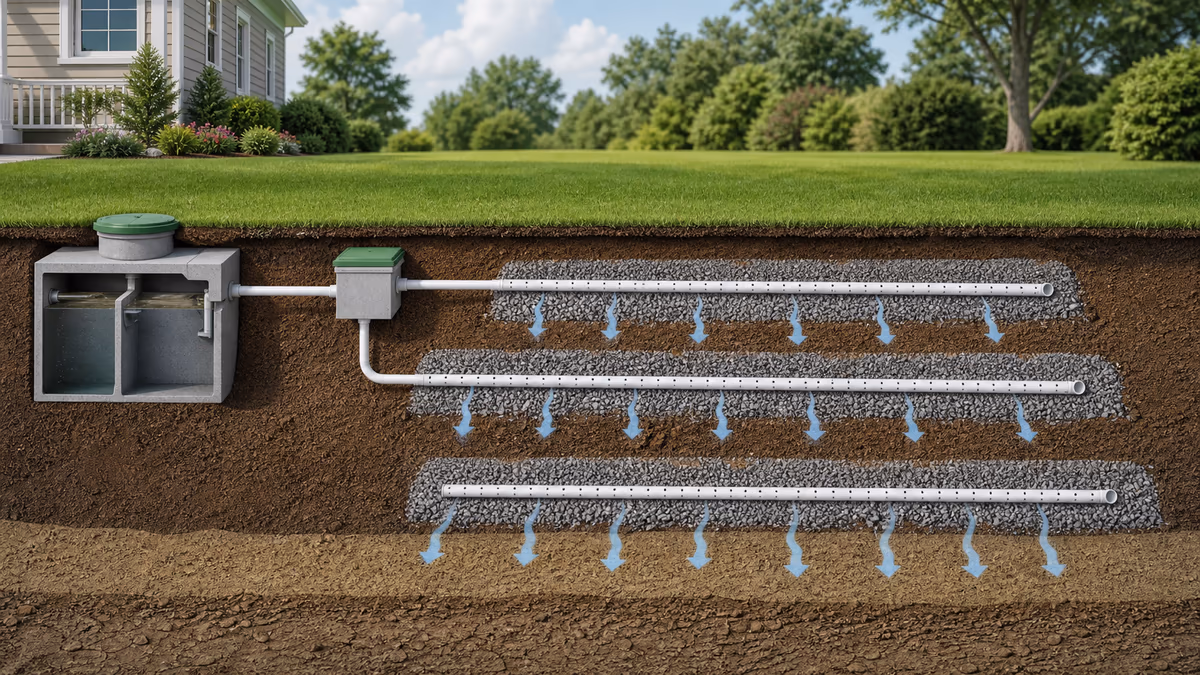

A septic leach field — also called a drain field, absorption field, or soil treatment area — receives clarified effluent from the septic tank and disperses it into native soil. As effluent trickles through the biomat that forms on the trench bottom and through the unsaturated soil below, microorganisms remove pathogens and much of the nutrient load before the water reaches groundwater. Sizing is the core design decision: an undersized field ponds, surfaces sewage, or backs up into the house, while a grossly oversized field wastes money, yard, and often the only soil on the lot good enough for a replacement field later. All calculations run in your browser; no data leaves your device.

Plain-text formula: designFlowGpd = bedrooms * flowPerBedroomGpd (or occupants * flowPerPersonGpd, or a measured value); requiredBottomAreaFt2 = designFlowGpd / applicationRateGpdFt2; designAreaFt2 = requiredBottomAreaFt2 * (1 - areaCreditPct/100) * (1 + safetyMarginPct/100); totalTrenchFt = designAreaFt2 / trenchWidthFt; laterals = ceil(totalTrenchFt / maxRunFt).

Source metadata: the percolation-to-application-rate table follows the widely used New York State Appendix 75-A residential design values, consistent with U.S. EPA onsite wastewater manual guidance; default flows, tank sizes, and costs are illustrative planning values only — replace them with your jurisdiction's adopted table, perc-test results, or an approved soil evaluation. Last reviewed July 2026.

How to use this leach field size calculator

1. Pick a scenario preset if one matches your project, or leave it on Custom.
2. Choose the design flow basis. Most U.S. codes size residential systems by bedroom count, but you can also model occupants or enter a measured daily flow.
3. Describe the soil. Enter a percolation test result in minutes per inch and the calculator converts it to a soil application rate using a widely adopted state table, or switch to direct entry if your jurisdiction hands you a loading rate in gallons per day per square foot.
4. Set trench geometry: trench width (bottom-area credit is typically capped near 3 feet), maximum lateral run, and the undisturbed spacing between trenches.
5. Apply credits and margins: a gravelless-chamber area credit where your county approves one, and an optional safety margin.
6. Flag a reserve area if your code requires setting aside a full replacement field, and add a unit cost if you want a rough materials budget.
7. Click Calculate Leach Field Size and review the sizing table, the lateral layout, the top-down diagram, and every warning before talking to a designer.

Design flow: bedrooms, occupants, and gallons per day

Residential codes almost universally estimate wastewater from bedrooms, not current occupants, because houses outlive their owners: a common assumption is two persons per bedroom at 55 to 75 gallons per person per day, folded into a single per-bedroom figure. State values cluster between 110 gallons per day per bedroom (New York's Appendix 75-A and Massachusetts Title 5), 120 in many states, and 150 in some jurisdictions. A frequently used planning guideline is $Q=B\times 120$ gallons per day, where $B$ is the bedroom count. Actual metered indoor use averages closer to 50 to 60 gallons per person per day, which is exactly the margin codes intend: design flow is a safe peak assumption, not a prediction. If you size to today's two occupants instead of the code's bedroom basis, the field will be undersized on paper the day the house sells to a family of five.

A garbage grinder (disposal) mainly increases the solids load rather than the hydraulic load, so most codes respond by requiring a larger septic tank or an effluent filter rather than a bigger field; a few treat it as an extra bedroom equivalent. The calculator flags the tank-size consequence instead of silently inflating the field.

Percolation rate, soil loading, and the application-rate table

Soil controls everything. A percolation test measures how many minutes water takes to fall one inch in a prepared, pre-soaked test hole; a soil evaluation maps texture and structure directly. Either way, the jurisdiction converts the result into a soil application rate (also called a loading rate or long-term acceptance rate) in gallons per day per square foot of trench bottom. The table below is the residential conversion used by New York State's Appendix 75-A and mirrored, with small variations, by many other U.S. codes. Note both ends: soil faster than 1 minute per inch provides too little treatment for a normal gravity trench, and soil slower than 60 minutes per inch is not creditable for a conventional field at all.

Older reference tables sometimes list rates such as 0.4 or 0.35 gpd/ft² for percolation times of 60 to 120 minutes per inch; modern residential codes generally refuse conventional gravity trenches in that range instead. Your health department's adopted table is the one that counts — some states also assign rates by soil texture class rather than perc time.

The rate is deliberately far below a clean sand's short-term intake, because within months a biological clogging layer — the biomat — forms on the infiltrative surface and becomes the real hydraulic bottleneck. That is also why a field that "perced great" can still fail if it is loaded above the long-term acceptance rate.

Formula walkthrough: from design flow to trench layout

The required absorption area $A$ divides daily design flow by the soil application rate:

where $Q$ is design flow in gallons per day and $L$ is the application rate in gallons per day per square foot. For trench systems, $A$ is trench-bottom area: only the excavated bottom of each lateral counts, sidewall is treated as a hidden bonus, and the soil left between trenches contributes nothing to the credited area. The calculator then applies an optional gravelless-chamber credit and safety margin, and converts area to total trench length $L_t$ using trench width $W$:

Because most codes cap individual lateral runs (100 feet is the classic gravity-distribution limit), the total length is split into $N=\lceil L_t/L_{max}\rceil$ equal laterals. The field footprint follows from the lateral count, trench width, and the undisturbed soil left between trenches, and doubles if your code requires a designated 100% reserve (replacement) area. If a unit price is supplied, material cost is estimated as $C=A\times P$, where $P$ is the installed price per square foot of absorption area.

Trenches versus beds, chambers, and area credits

Three geometry rules surprise most first-time planners. First, width credit is capped: codes typically credit trench bottoms only up to 24 to 36 inches wide. Excavate wider and the system is reclassified as an absorption bed, which — because it has less sidewall per square foot and worse oxygen transfer — is assigned a lower application rate and needs more area, not less. Second, runs are capped: gravity-dosed laterals longer than about 100 feet distribute effluent unevenly, so big fields become several parallel trenches fed by a distribution box, not one long line. Third, products can earn credits: open-bottom plastic chambers are approved for a 25% to 40% area reduction in many states because they keep the infiltrative surface free of gravel masking; other jurisdictions grant no reduction. The credit input defaults to zero — enter a figure only after confirming it locally.

Worked example: sizing a three-bedroom home on loam

Consider a three-bedroom house at 120 gallons per day per bedroom, so $Q=360$ gpd. The perc test comes back at 25 minutes per inch, which the table converts to 0.6 gpd/ft². Required bottom area is $360/0.6=600$ square feet. With a 10% safety margin the design area becomes 660 ft². Using standard 2-foot-wide trenches, total trench length is 660 / 2 = 330 linear feet; with laterals capped at 100 feet, that is four laterals of 82.5 feet each. Leaving 6 feet of undisturbed soil between trenches, the primary field occupies a strip roughly 26 feet wide by 82.5 feet long — about 2,150 ft² of yard — and a required 100% reserve area doubles the land set-aside to roughly 4,300 ft². The same house on sand at 8 minutes per inch (0.9 gpd/ft²) needs 440 ft² after margin, while on clay loam at 55 minutes per inch (0.45 gpd/ft²) it needs 880 ft² — and at 90 minutes per inch a conventional field is off the table entirely. At $6 per square foot of installed absorption area, the loam design's materials run about $3,960; a full installed system is typically several times the bare materials number.

Site constraints: separation, setbacks, and reserve area

Area is necessary but not sufficient. Conventional trenches also need vertical separation — commonly 2 to 4 feet of unsaturated native soil between the trench bottom and seasonal high groundwater, bedrock, or another restrictive layer — verified by soil pits, not guesswork. Horizontal setbacks are typically on the order of 100 feet from wells (50 in some codes), 50 to 100 feet from streams and lakes, and about 10 to 20 feet from property lines, foundations, and pressurized water lines. Many jurisdictions also require a mapped reserve area: a second, untouched patch of ground good enough to build a full replacement field if the first one fails. Sloped sites, trees, driveways, and buried utilities shrink the usable envelope further, which is why the footprint output matters as much as the square footage.

Septic tank sizing and maintenance connection

The tank and the field are sized separately but fail together. Common residential minimums are 1,000 gallons for up to three bedrooms, 1,250 for four, and 1,500 for five, with a garbage grinder usually pushing the tank one size up or adding an effluent filter requirement. An under-pumped tank passes solids that clog the biomat years early, so the cheapest life-extension for any leach field is pumping the tank on schedule (typically every 3 to 5 years), keeping vehicles and structures off the laterals, routing roof and footing drains away from the field, and planting only shallow-rooted grass above it.

Limitations, assumptions, and responsible use

This is an educational planning model of conventional gravity trench sizing, and real designs must comply with local code on every parameter it simplifies: trench depth, aggregate specification, distribution method, dosing, slope limits, curtain drains, and reserve requirements. It does not design mounds, sand filters, aerobic treatment units, drip dispersal, or any pressure-dosed system, and it does not verify vertical separation, setbacks, or site suitability. Percolation tests require specific soak and measurement procedures, single tests misrepresent variable soils, and only licensed professionals should interpret them. Use conservative inputs, bring the printout to your engineer or health department as a conversation starter, and let the permitting authority's numbers govern the moment they differ from these.

Leach field sizing: frequently asked questions

Conclusion

The Leach Field Size Calculator turns the core of conventional drain field design — design flow divided by a soil application rate, laid out as capped-length laterals with spacing and reserve area — into an interactive planning tool. Experiment with soil, bedrooms, chamber credits, and trench geometry to see how strongly the site controls the answer, then take the results to a licensed designer and your health department before anything is excavated.
